Control panel LED lighting built-in

This set is designed to switch off-road lighting in your Porsche Cayenne. A high capacity fixed housing, equipped with five 5-pin JD1914 12V 40A relays and one 4-pin RTT7121 12V 40A relay. In addition, the box contains six ATC/ATO blade fuses (5A, 10A, 15A, 20A, 25A, 30A), allowing you to easily connect various accessories such as lighting, additional power points and other off-road applications.

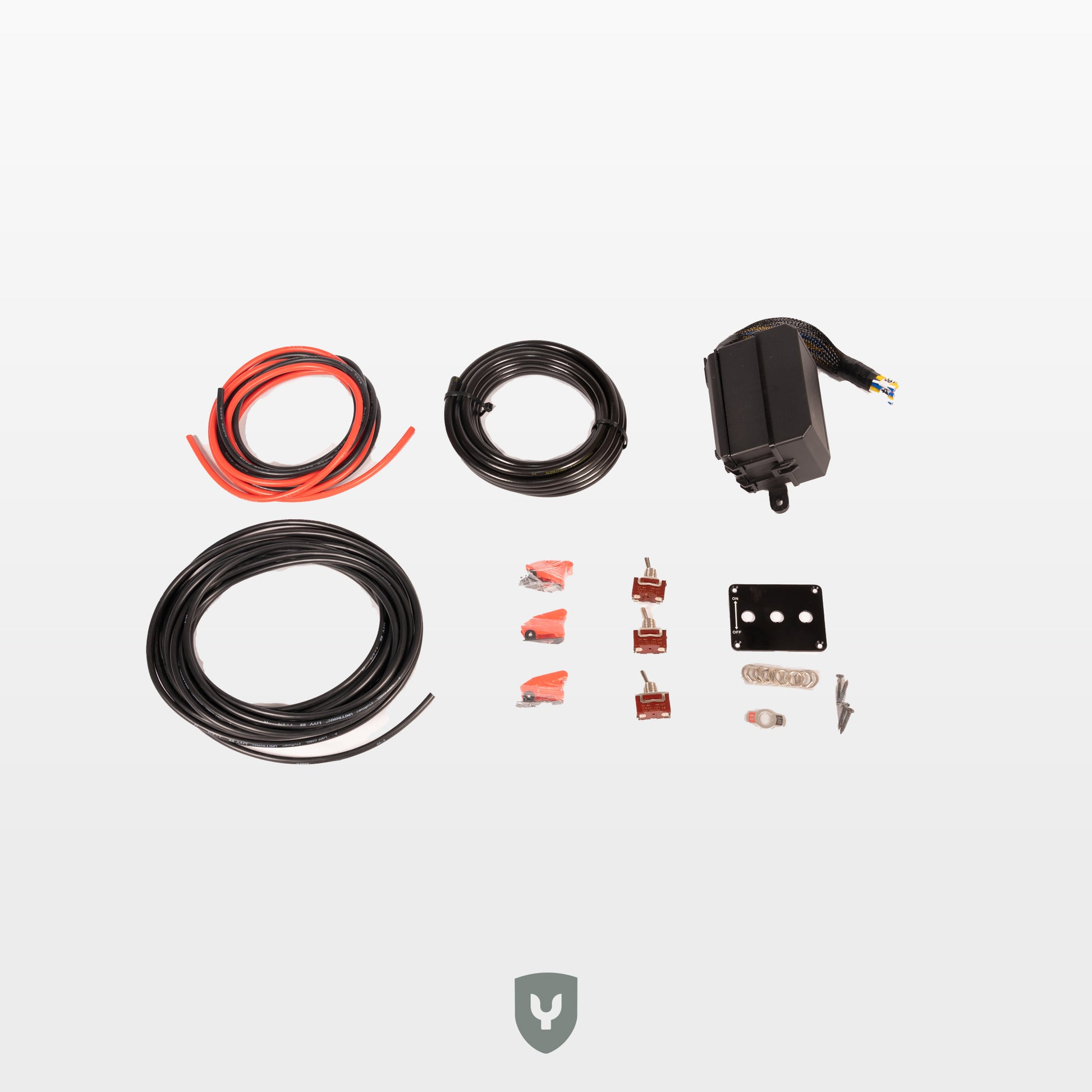

Contents of the set

• Fuse and relay box with 5 connections
• Toggle switches for 5 accessories
• Custom RAY cabling from lighting to box
• Custom RAY wiring from battery to box
• Custom RAY cabling from switches to box

Durable and Weather Resistant
The housing is made of heat-resistant materials and offers protection against water and dust. Thanks to its sturdy construction, the relay box can withstand tough conditions and off-road use.

Strong and Reliable
The flame-retardant casing and solid structure ensure maximum safety and performance. The smart cable outlet protects the wiring from water, dust and dirt, so you can ride in challenging conditions without worries.

Specifications:

• Relay: 5x 5-pin JD1914 12V 40A, 1x 4-pin RTT7121 12V 40A
• Fuses: 6 pieces (5A, 10A, 15A, 20A, 25A, 30A)
• Maximum current: 40A
• Contact Points Material: Copper Alloy
• Mounting: Wall mounting
• Operating mode: Automatic
• Wattage: 2500W
• Coil voltage: 12V DC

A compact and powerful solution for off-road enthusiasts who want to provide their vehicle with reliable power distribution.
